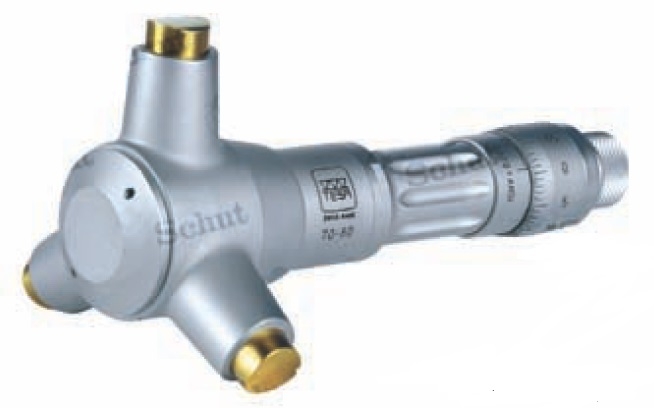

Imicro mjerni sistem ima jedinstvenu kombinaciju navojnog konusa i tri mjerne ruke. Ovo čini TESA Imicro vrlo preciznim mjernim instrumentom.
Mjerni raspon : ø3.5-300mm.
Podjela: 0.001mm(ø 3.5- 12mm); 0.005mm(ø 11 -100mm); 0.01 mm(ø100 -300mm).
Mjerna područja: ø 3.5 - 12mm - otvrdniti čelik; ø 11 - 100mm - nitrirani titanij (TiN); ø100 - 300mm - Volfram Karbid.
DIN863T4
Isporuka u kutiji s inspekcijskim izvješćem i izjavom o sukladnosti
| Kataloški broj | Mjerni raspon | Točnost | Ponovljivost | Dužina A B C |
| mm | mm | mm | mm | |
| 779.571 | ø 3.5- 4 | ±0.004 | ±0.004 | 2 1.5 20 |
| 779.572 | ø 4 - 4.5 | ±0.004 | ±0.004 | 2 1.5 20 |
| 779.573 | ø 4.5- 5.5 | ±0.004 | ±0.004 | 2 1.5 25 |
| 779.574 | ø 5.5- 6.5 | ±0.004 | ±0.004 | 2 1.5 25 |
| 779.481 | ø 6 - 8 | ±0.004 | ±0.004 | 2.5 2.5 52 |
| 779.482 | ø 8 - 10 | ±0.004 | ±0.004 | 2.5 2.5 52 |
| 779.483 | ø 10 - 12 | ±0.004 | ±0.004 | 2.5 2.5 52 |
| 779.497 | ø 11 - 14 | ±0.004 | ±0.004 | 3.5 4 77 |
| 779.498 | ø 14 - 17 | ±0.004 | ±0.004 | 3.5 4 77 |
| 779.499 | ø 17 - 20 | ±0.004 | ±0.004 | 3.5 4 77 |
| 779.515 | ø 20 - 25 | ±0.004 | ±0.004 | 7 7 78 |
| 779.516 | ø 25 - 30 | ±0.004 | ±0.004 | 7 7 78 |
| 779.517 | ø 30 - 35 | ±0.004 | ±0.004 | 7 7 78 |
| 779.518 | ø 35 - 40 | ±0.004 | ±0.004 | 7 7 78 |
| 779.539 | ø 40 - 50 | ±0.005 | ±0.005 | 11 12 84 |
| 779.540 | ø 50 - 60 | ±0.005 | ±0.005 | 11 12 84 |
| 779.541 | ø 60 - 70 | ±0.005 | ±0.005 | 11 12 84 |
| 779.542 | ø 70 - 80 | ±0.005 | ±0.005 | 11 12 84 |
| 779.543 | ø 80 - 90 | ±0.005 | ±0.005 | 11 12 84 |
| 779.544 | ø 90 -100 | ±0.005 | ±0.005 | 11 12 84 |
| 779.553 | ø 100 -125 | ±0.006 | ±0.006 | 26 18 81 |
| 779.554 | ø 125 -150 | ±0.006 | ±0.006 | 26 18 81 |
| 779.555 | ø 150 -175 | ±0.007 | ±0.007 | 26 18 81 |
| 779.556 | ø 175 -200 | ±0.007 | ±0.007 | 26 18 81 |
| 779.562 | ø 200 -225 | ±0.008 | ±0.008 | 26 18 81 |
| 779.563 | ø 225 -250 | ±0.008 | ±0.008 | 26 18 81 |
| 779.564 | ø 250 -275 | ±0.008 | ±0.008 | 26 18 81 |
| 779.565 | ø 275 -300 | ±0.008 | ±0.008 | 26 18 81 |
